INVERTEC

Brand:

Manufacturer Part# SKU: IMMO-ER

Vehicle Password Immobilizer System

Automatic, passive immobilizing system.

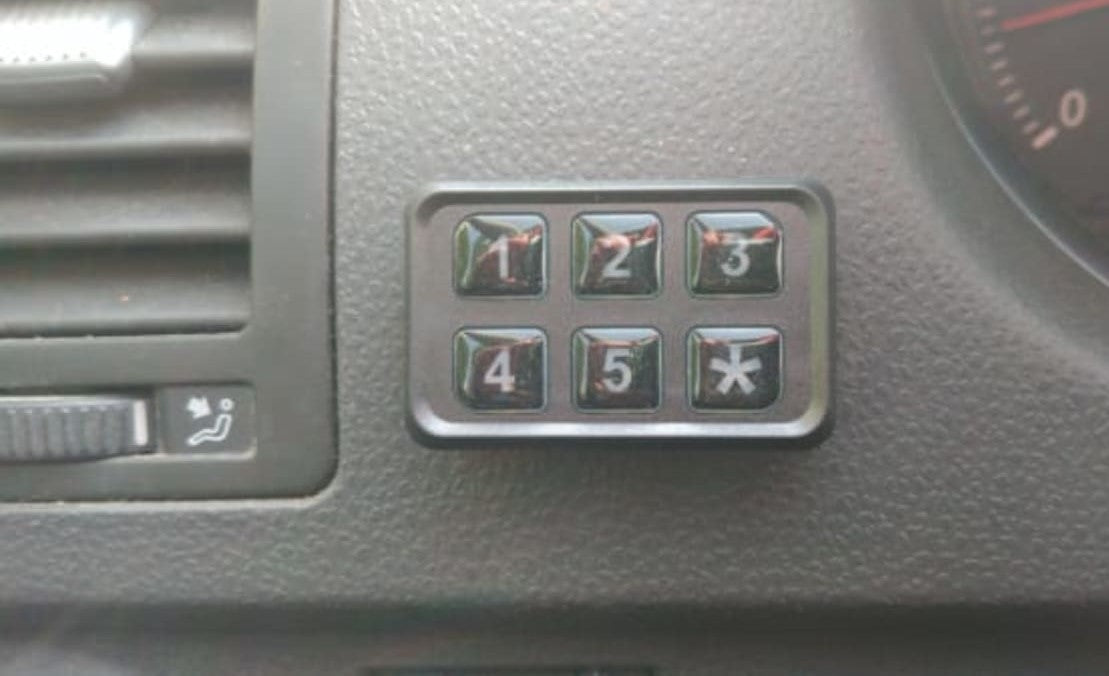

The CODE-CUT is a keypad-controlled immobilizer system for theft prevention.
It supports one wire cut of the fuel pump, start motor, ignition coils, or any other important system of your car, van, truck, bus, tractor, bike, or any machine where 12 Volts is available!

The CODE-CUT immobilizer can be used as a stand-alone solution for anti-theft applications based on an advanced programmable keypad, which can save your vehicle even if the wrong person has the keys.

The cut can be done anywhere in the vehicle, which makes it very difficult to find the unit.

1. Highly reliable system
   2. 60 seconds of passive arming
   3. Programmable PIN Code
   4. Flashing status LED (Armed, Disarmed, Service Mode)
   5. Service mode
   6. D.I.Y Easy installation, comes with instructions

Password immobilizer

INSTRUCTION MANUAL
First default password *5341. Primary password from the manufacturer, required to change immediately after installation

Disarm:
1) Enter*password*, and the keypad will beep twice, within 60 seconds, turn ACC to ON, the LED will be off and the system is disarmed.

2) The keypad will beep once at each press of the button. After the password is entered, if the password is correct, the keypad will beep twice: if the password is wrong, the keypad will beep three times.

3) When entering the password, if you press the wrong button, you need to stop pressing buttons and then Return the correct password from the beginning including the star button.
The keypad will be locked for 3 minutes if you have entered the password wrongly three times ( continuously). The star buttons will flash fast and beep every 5 seconds. After the 3 minutes, it will long beep mine keypad get out of look mood.

Arm:
A) Active arming: 60 seconds after ACC OFF, the LED will be On all 60 seconds. The system will enter armed status automatically and the LED indicator will flash constantly.
B) Passive arming:
1? ACC OFF, press * for 2 seconds, the keypad will give long beeps to indicate the system is armed and the LED indicator will flash constantly.

Modify password:
In armed mode, enter the default or your old password *_ _ _ _. Open ACC ON, enter a twice new password *_ _ _ _BIP*_ _ _ _ the keypad will beep Melody, and the LED WILL OFF, the password is modified successfully.
The new password can be ( * + 4 digits), You can not put the same digits as 11, 22,
*5341 , open ACC ON , twice *New password *_ _ _ _ bip *_ _ _ _ bip bip

• Unplug the appliance before installing this part
